Wiping Cable Gland, Brass Cable Glands Wiping Cable Glands

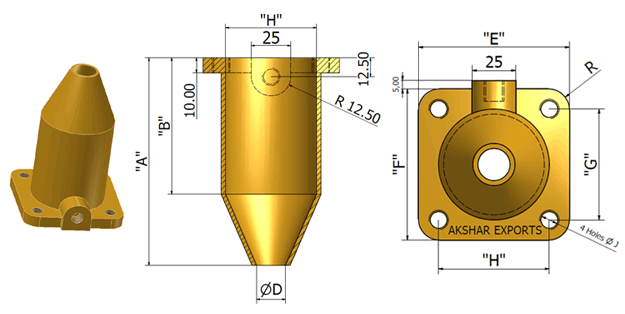

Wiping Gland “X” and “Y”

Gland Size	Dai. over metal sheath of Cable	Dimension in mm
Gland Size	Dai. over metal sheath of Cable	A	B	ØC	ØD	E	F	G	H	ØJ	R
X	12 to 51	137	90	60	19	90	90	66	66	12	12
Y	25 to 78	155	95	108	32	114	123	95	86	14	14

Material:Brass BS 2874

Size:X and Y

Application:For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables. Used in dry indoor conditions.

Accessories:Hot Dip Galvanised Mild Steel Clamp, Neoprene Gasket

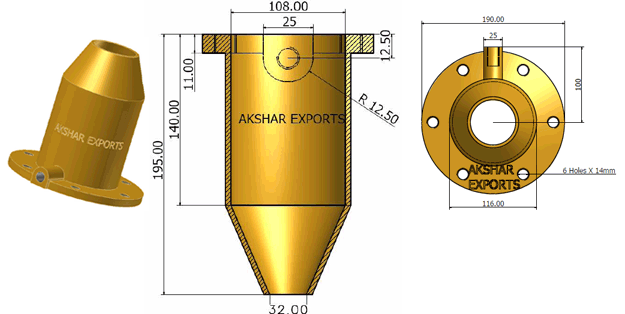

Wiping Cable Glands

Gland Size	Dai. over metal sheath of Cable	Dimension in mm
Gland Size	Dai. over metal sheath of Cable	A	B	ØC	ØD	E	F	ØJ
Z	25 to 94	195	140	108	32	190	100	14

Material:Brass BS 2874

Size:Z

Application:For Use with SWA, Plastic and Rubber (Elastomer) sheathed cables. Used in dry indoor conditions.

Accessories:Hot Dip Galvanised Mild Steel Clamp, Neoprene Gasket

We Manufacture and Export High Quality Alco Cable Glands exactly as per Customer Specifications, Drawing & Requirement.
